Silicone-coated fiberglass firesleeve fitting and joint clearance should be reviewed as an installation route, not as a single diameter. Pyroflex firesleeve is installed on cables and hoses and can expand over fittings or joints. Pyroflex firesleeve has a stated continuous high-temperature resistance of 260°C, making it a clear candidate for a thermal-protection discussion when the protected component and exposure are defined.
The key question is simple: can the sleeve travel over the largest feature before the final connection is made? If it can, a continuous length can be planned around the protected run. If not, the buyer needs a different access approach and a configuration conversation before ordering.
Define the pass-over path
Map the component from one end to the other. Mark couplings, ferrules, connectors, joint bodies, clamps and branch points. Then identify the largest outside envelope and the location where the sleeve needs to begin and end. This turns a vague “will it fit?” question into information an assembly or technical team can actually review.

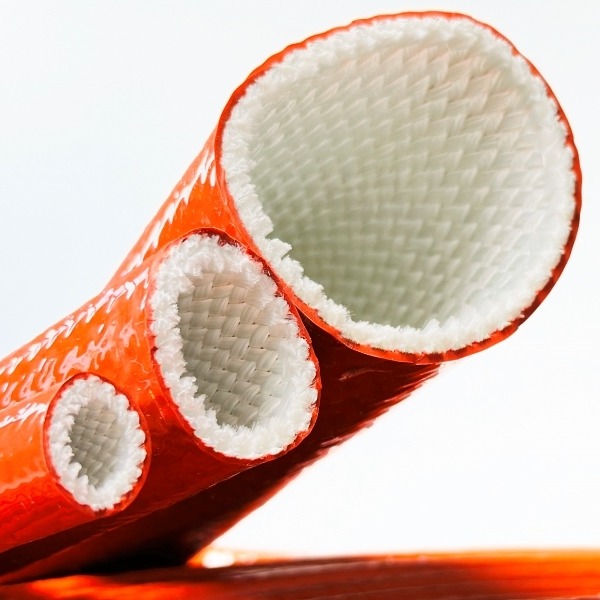

Pyroflex silicone-coated fiberglass firesleeve is a thick-walled woven glass-fiber sleeve coated with flame-retardant silicone rubber. This construction means the sleeve is planned around the cable or hose, while the buyer supplies the real interface geometry and installation sequence.
Use the thermal figures in the right decision
For the mapped product, the stated short-duration temperature figures are 1090°C for 15–20 minutes and 1650°C for 15–30 seconds. These figures belong to the specified product scope; they are not a substitute for defining the heat source, exposure duration or final assembly condition. Used correctly, they help the buyer bring an exposure profile into the same conversation as fitting clearance.
Where clearance creates value
- **Pre-assembly installation:** a sleeve that can pass the largest joint can be placed before final connection. – **Defined coverage:** recording stop points avoids leaving the intended heat-exposure section ambiguous. – **Service planning:** identifying clamps and access points helps the team discuss routing without assuming a particular machine or application is approved.
If a fitting layout cannot follow the expected route, send the component type, joint dimensions, access constraints and exposure information to discuss a customised configuration or tailored option.
Configuration reference
The confirmed identity is Pyroflex silicone-coated fiberglass firesleeve. The public product page was verified in August 2026. Temperature and installation statements apply to the mapped product; final selection requires review of the requested configuration and project condition.
FAQ
What must be included in a fitting-clearance review?
Provide the largest fitting or joint envelope, the protected length, installation sequence, bends, clamps and heat-exposure details.
Do the published short-duration figures approve my installation?
No. They define the mapped product’s stated scope; the component, exposure and configuration still need technical review.
Post time: Sep-15-2026
